Welcome to MÜV Elevators Components a global supplier of high-quality elevator components. With extensive industry expertise, we provide comprehensive solutions for elevator manufacturers, installers, and maintenance providers.
We specialize in sourcing and distributing premium elevator parts, ensuring seamless mobility and efficiency. Our vast network and strategic partnerships enable us to offer:
Mission:
To deliver exceptional value, reliability, and innovation, fostering long-term partnerships with our customers and suppliers.
Values:

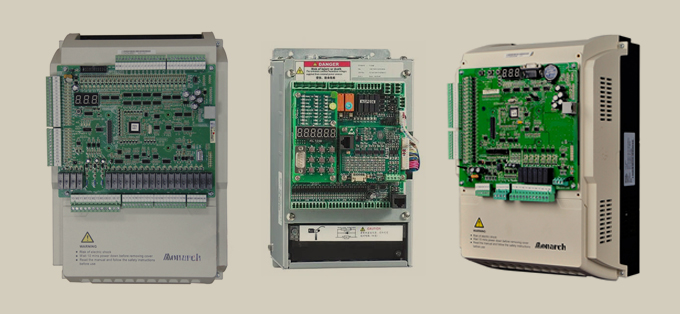

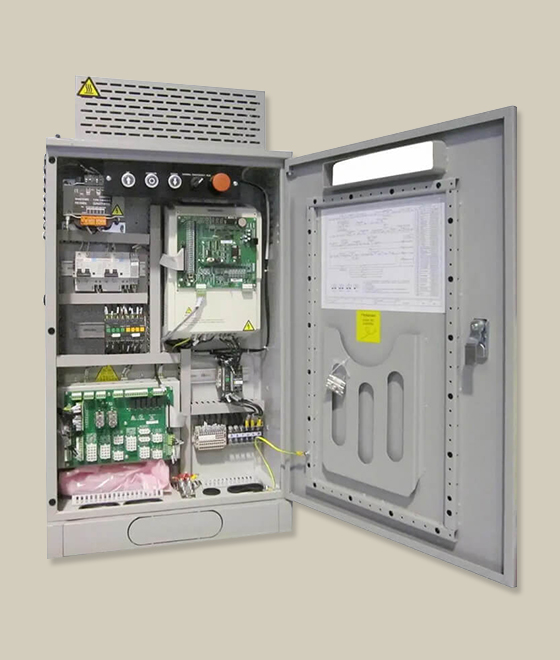

Elevator controller, is a variety of electronic devices and electrical components are installed in a safe and protective role of the cabinet structure within the electronic control device, also known as the central controller of the elevator.
All the operation of the elevator depends on the control cabinet, which contains some parameters of the elevator operation and control system, such as direction operation, stop, system monitoring and so on. If the elevator is compared to a person, then the controller is like the brain of the person, without the controller the elevator can not run.

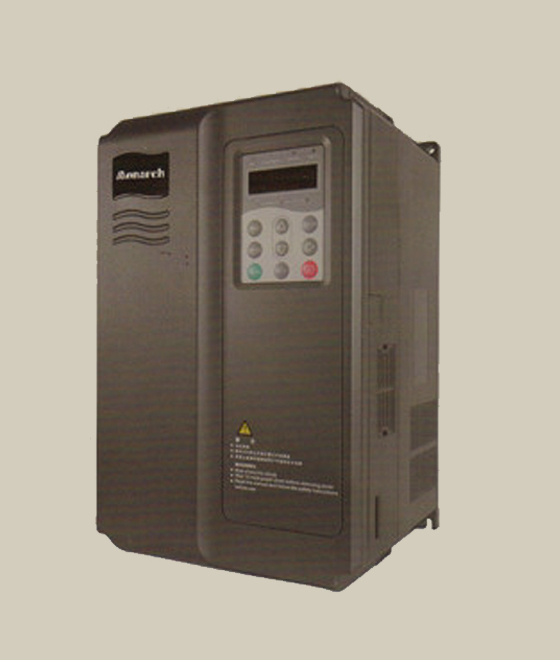

MÜV specializes in providing a wide range of elevator controller products for traction elevators. Our controllers include brands such as Monarch, Step, INVT, etc., which can be customized with different functions, sizes and shapes according to your system requirements, and OEM services are also available.

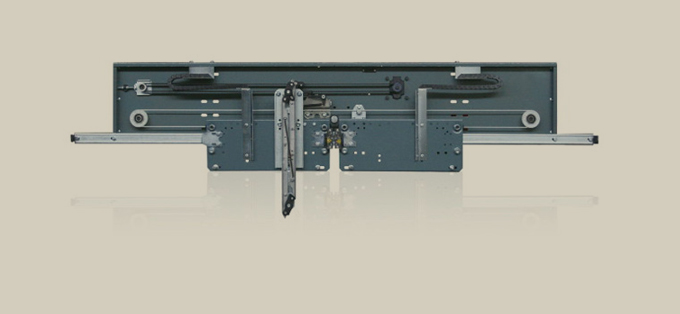

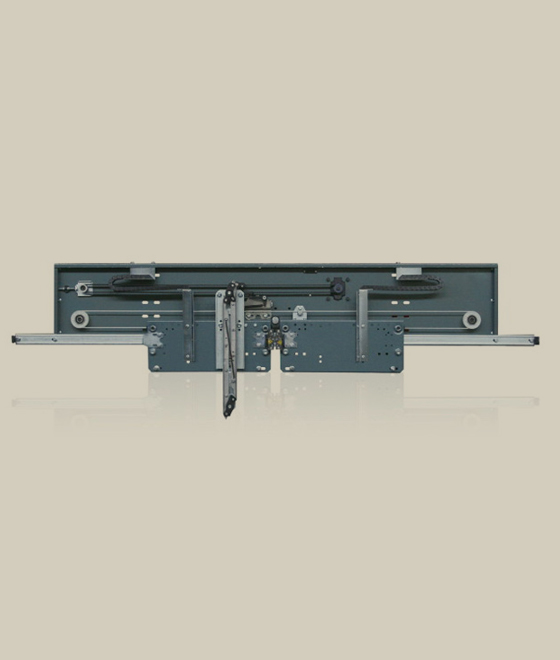

MÜV is a leading manufacturer and supplier of elevator door systems in China. Our elevator doors can meet all national standards, including EN 81-20/50, CE certification, and fire protection requirements: E120/EI120 60 90, etc. They are widely used in residential, office buildings, airports, hotels and other public buildings.
Our elevator door opening sizes range from 600mm to 2400mm, we can provide OEM service according to your requirements, and all elevator doors can be shipped with standard opening sizes within 10 working days.

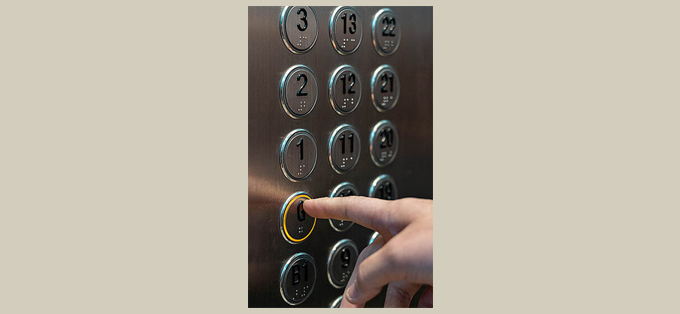

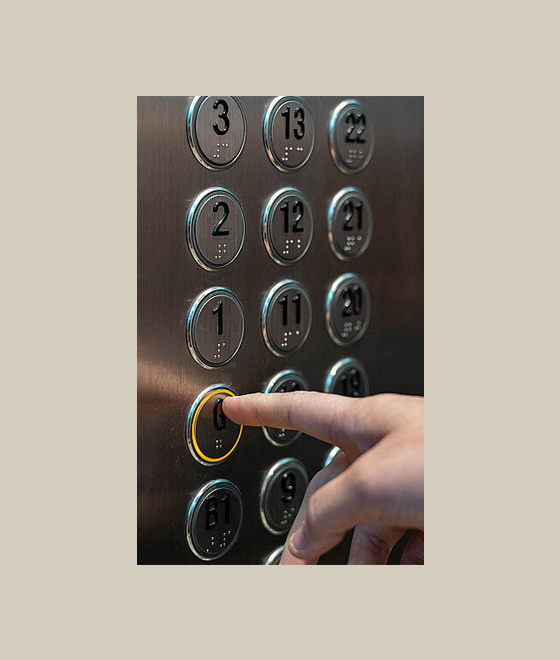

MÜV provides all types and sizes of elevator buttons, including standard series buttons, and customized options designed for diverse specifications and applications. All our buttons are certified with CE and EN80 standards. Additionally, we supply buttons from renowned brands like Kone, Otis, and more.
Relying on the strength of the industrial chain in China, you can get top-quality elevator buttons from Dazen at a competitive price point and with expedited delivery.

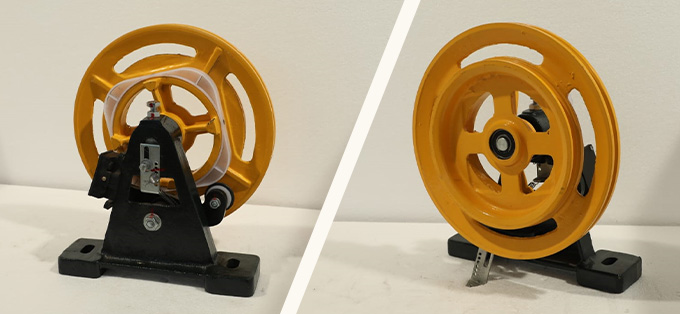

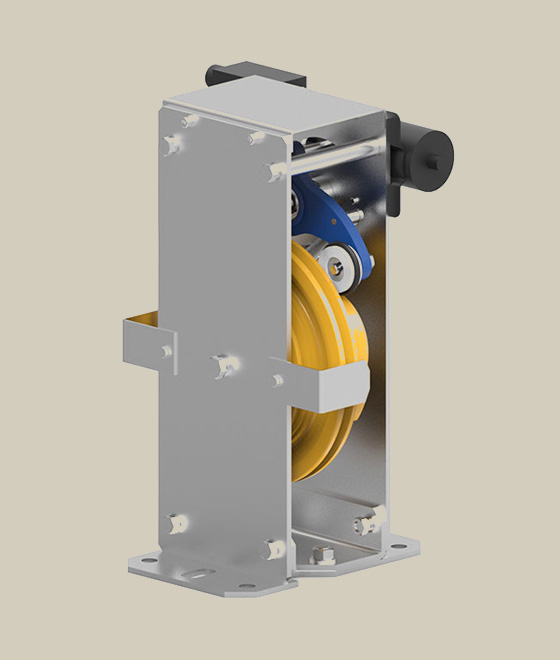

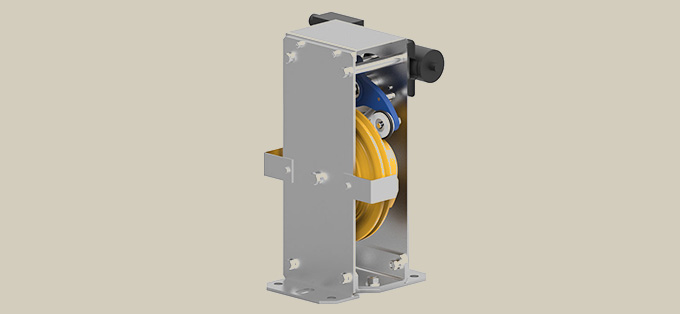

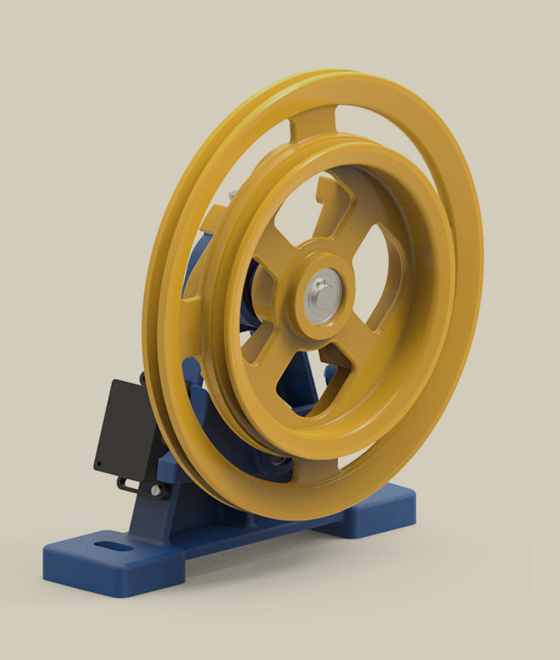

| AS PER EN NORMS | ||
|---|---|---|
| Nominal speed max m/s | Electrical tripping speed m/s | Mechanical tripping speed m/s |
| 0.50 | 0.58 | 0.63 |
| 0.63 | 0.72 | 0.79 |
| 0.82 | 0.94 | 1.03 |
| 1.00 | 1.15 | 1.25 |
| 1.20 | 1.38 | 1.50 |
| 1.50 | 1.73 | 1.88 |
| 1.60 | 1.84 | 2.00 |
| 1.80 | 2.07 | 2.25 |
| 2.00 | 2.30 | 2.50 |
| AS PER I S NORMS | ||
|---|---|---|
| Nominal speed max m/s | Electrical tripping speed m/s | Mechanical tripping speed m/s |
| 0.50 | 0.63 | 0.70 |
| 0.63 | 0.79 | 0.88 |
| 0.82 | 1.03 | 1.15 |
| 1.00 | 1.25 | 1.40 |
| 1.20 | 1.50 | 1.68 |
| 1.50 | 1.88 | 2.10 |
| 1.60 | 2.00 | 2.24 |
| 1.80 | 2.25 | 2.52 |
| 2.00 | 2.50 | 2.80 |
| AS PER EN NORMS | ||
|---|---|---|
| Nominal speed max m/s | Electrical tripping speed m/s | Mechanical tripping speed m/s |
| 1.00 | 1.15 | 1.25 |
| 1.20 | 1.38 | 1.50 |
| 1.50 | 1.73 | 1.88 |
| AS PER I S NORMS | ||
|---|---|---|
| Nominal speed max m/s | Electrical tripping speed m/s | Mechanical tripping speed m/s |
| 1.00 | 1.25 | 1.40 |
| 1.20 | 1.50 | 1.68 |
| 1.50 | 1.88 | 2.10 |
| Type of Wt. | Dead Wt. (Kgs.) |
| Casting | 10 Kgs |
| Casting | 20 Kgs |
| Filler | 10 Kgs |
| Filler | 15 Kgs |

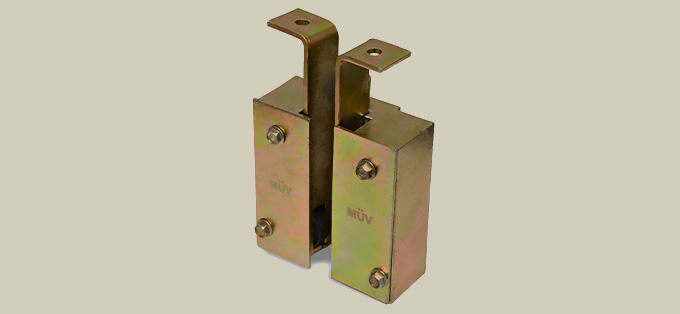

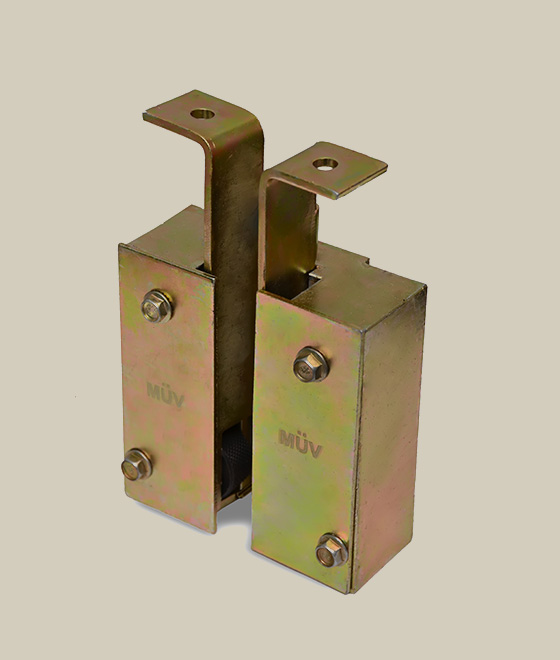

| TYPE | RAILS | MAX NORMAL SPEED |
| sp50 | 6 to 16 mm | 0.60 m/s |
| TRIPPING SPEED | HOLES | MASS KG | MATERIAL |
| 1 m/s | REAR M10 | 4.0 | C 40 |
| Max load on two devices at different release speed | 0.06 m/s | 3128 kgs | |
|---|---|---|---|
| 0.80 m/s | 2853 kgs | ||
| TYPE | RAILS | MAX NORMAL SPEED |
| sp50 | 6 to 16 mm | 0.60 m/s |
| TRIPPING SPEED | HOLES | MASS KG | MATERIAL |
| 1 m/s | SIDE M12 | 4.0 | C 40 |
| Max load on two devices at different release speed | 0.06 m/s | 3128 kgs | |
|---|---|---|---|
| 0.80 m/s | 2853 kgs | ||

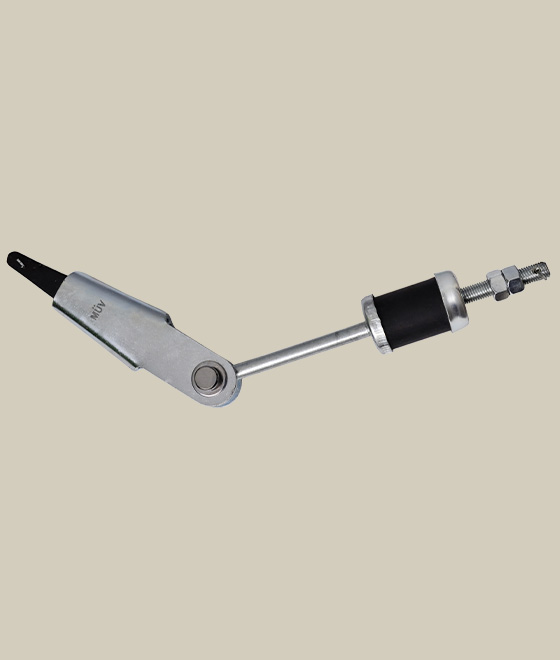

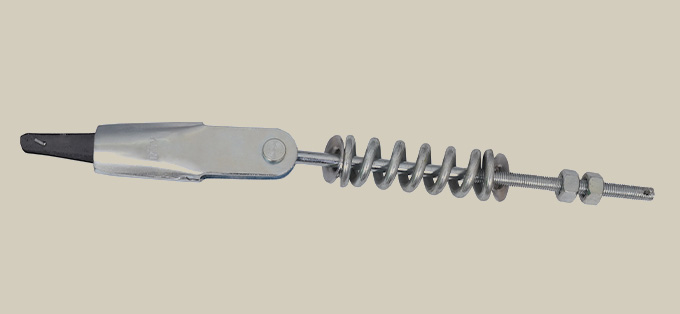

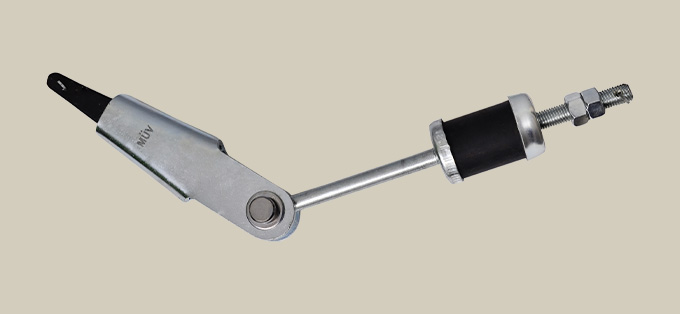

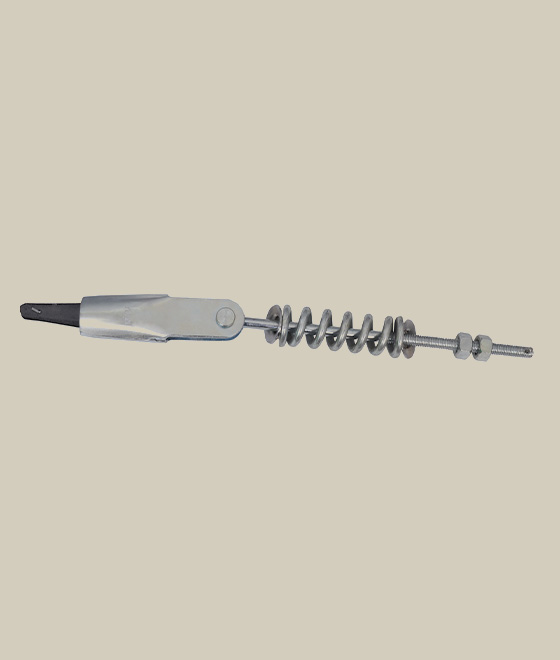

| ROPE D mm | ø D | L eye | L mm | F | TL mm | A | B | C | D | MIN STRENGTH KN |
| 6 - 8 | M12 | 300 | 430 | 130 | 150 | 110 | 32 | 6.5 | 50 | 29.4 |
| 6 - 8 | M12 | 500 | 630 | 130 | 150 | 110 | 32 | 6.5 | 50 | 29.4 |
| 9 - 11 | M16 | 300 | 465 | 165 | 150 | 102 | 40 | 7 | 60 | 56.5 |
| 9 - 11 | M16 | 500 | 665 | 165 | 150 | 102 | 40 | 7 | 60 | 56.5 |
| 12 - 14 | M20 | 300 | 500 | 200 | 150 | 156 | 50 | 9 | 75 | 78.9 |
| 12 - 14 | M20 | 500 | 700 | 200 | 150 | 156 | 50 | 9 | 75 | 78.9 |
| 5 - 6.5 | M10 | 180 | 265 | 85 | 75 | 68 | 24 | 4 | 36 | 22.7 |
| ROPE D mm | ø D | L eye | L mm | F | TL mm | A | B | C | D | MIN STRENGTH KN |
| 6 - 8 | M12 | 300 | 430 | 130 | 150 | 110 | 32 | 6.5 | 50 | 29.4 |
| 6 - 8 | M12 | 500 | 630 | 130 | 150 | 110 | 32 | 6.5 | 50 | 29.4 |
| 9 - 11 | M16 | 300 | 465 | 165 | 150 | 102 | 40 | 7 | 60 | 56.5 |
| 9 - 11 | M16 | 500 | 665 | 165 | 150 | 102 | 40 | 7 | 60 | 56.5 |
| 12 - 14 | M20 | 300 | 500 | 200 | 150 | 156 | 50 | 9 | 75 | 78.9 |
| 12 - 14 | M20 | 500 | 700 | 200 | 150 | 156 | 50 | 9 | 75 | 78.9 |
| 5 - 6.5 | M10 | 180 | 265 | 85 | 75 | 68 | 24 | 4 | 36 | 22.7 |
| ROPE D mm | ø D | L eye | L mm | F | TL mm | A | B | C | D | MIN STRENGTH KN |
| 6 - 8 | M12 | 300 | 430 | 130 | 150 | 73.5 | 54 | 6.5 | 50 | 29.4 |
| 6 - 8 | M12 | 500 | 630 | 130 | 150 | 73.5 | 54 | 6.5 | 50 | 29.4 |
| 9 - 11 | M16 | 300 | 465 | 165 | 150 | 73.5 | 54 | 7 | 60 | 56.5 |
| 9 - 11 | M16 | 500 | 665 | 165 | 150 | 73.5 | 54 | 7 | 60 | 56.5 |
| 12 - 14 | M20 | 300 | 500 | 200 | 150 | 73.5 | 54 | 9 | 75 | 78.9 |
| 12 - 14 | M20 | 500 | 700 | 200 | 150 | 73.5 | 54 | 9 | 75 | 78.9 |
| 5 - 6.5 | M10 | 180 | 266 | 85 | 75 | 64 | 41 | 4 | 36 | 22.7 |

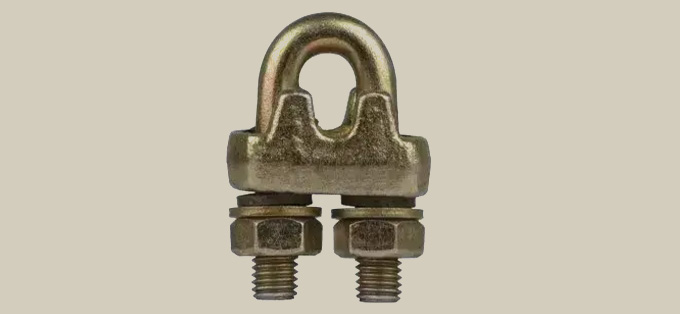

| ROPE D mm | TIGHTENING TOURQUE Nm |
| 5 - 6 | 4,24 |
| 7 - 8 | 4,24 |
| 9 - 10 | 10,20 |
| 12 - 13 | 20,11 |
| 15 - 16 | 20,11 |

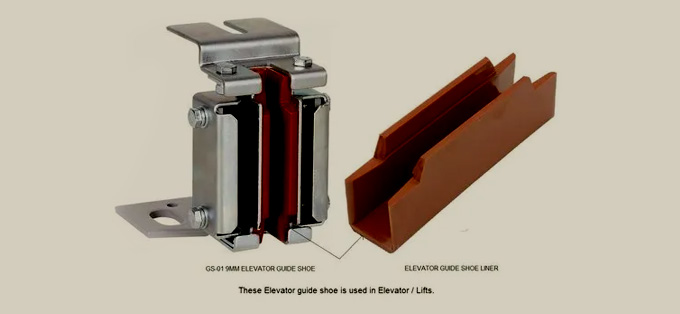

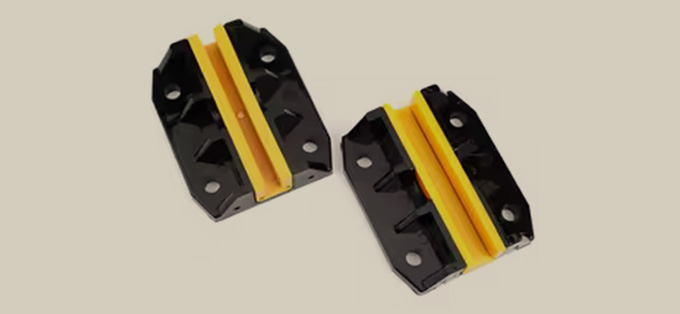

| Rail Size | Load daN |
| For 5 to 10 mm | 1000 |

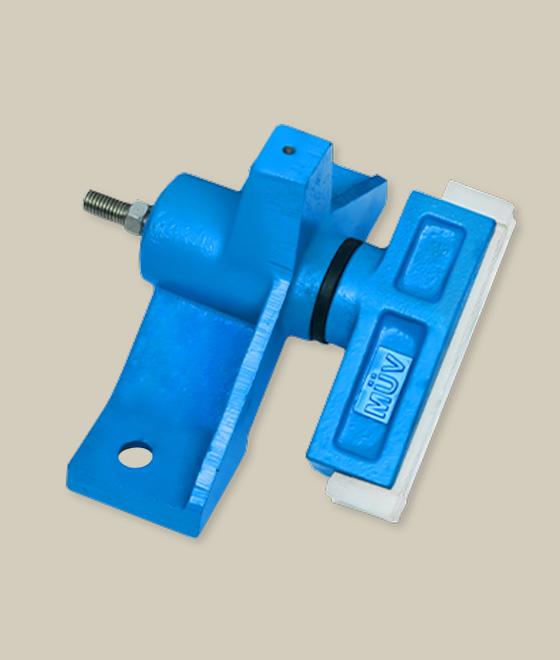

| Rail Size | Load daN | Type |
| For 16 mm | 2500 | ROCKING T600 |

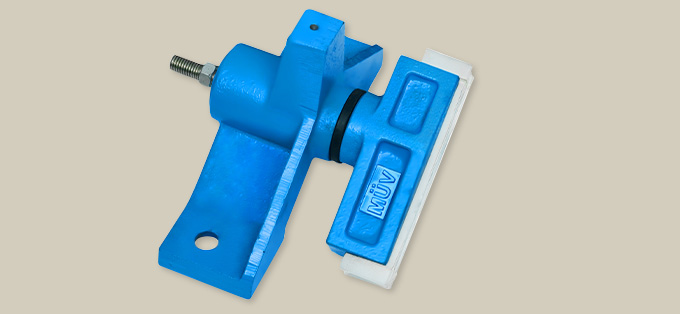

| Rail Size | Load daN | Type |
| From 5 to 16mm | 1350 | C. I. |
| Rail Size | Load daN | Type |
| From 5 to 16mm | 1000 | C. I. |
| Rated Speed | Rail Size |
| UPTO 1.75 M/S | From 9 to 16mm |
| Load daN | Type |
| 2350 | Sliding High Speed |

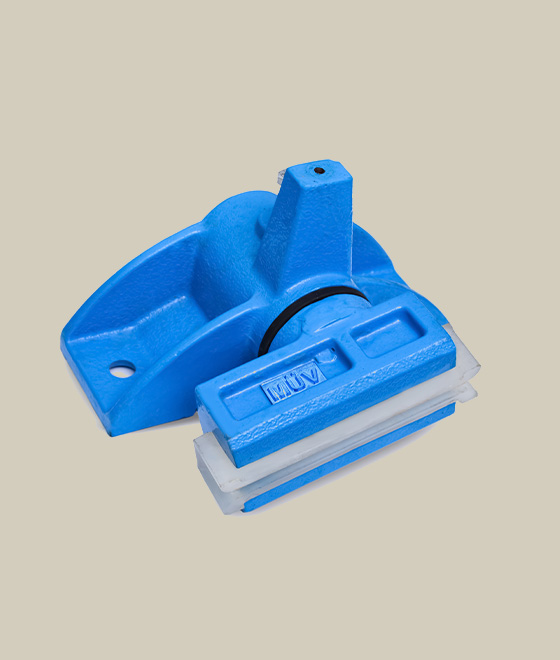

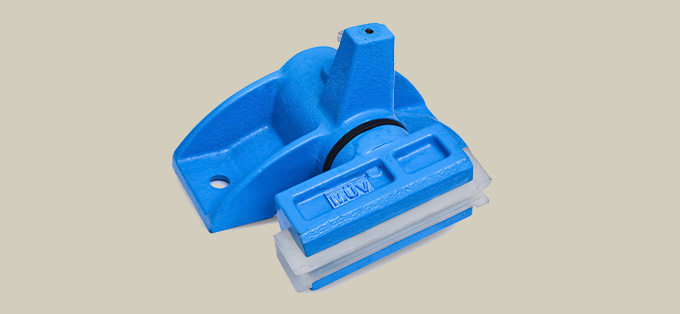

| Rail Size | Load daN | Type |
| For 16 mm | 2500 | ROCKING T600 |

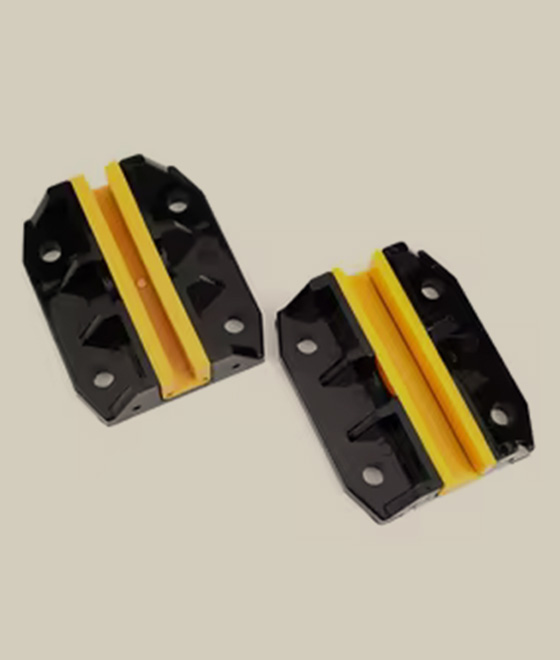

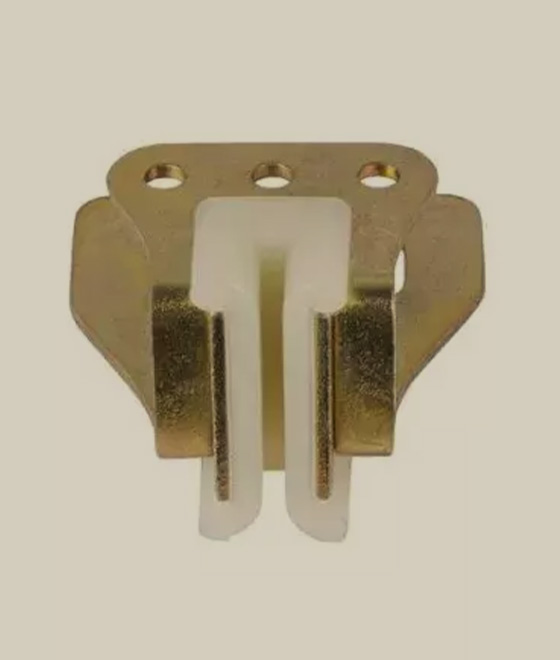

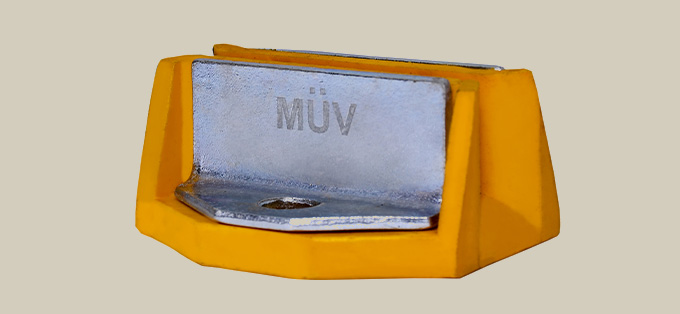

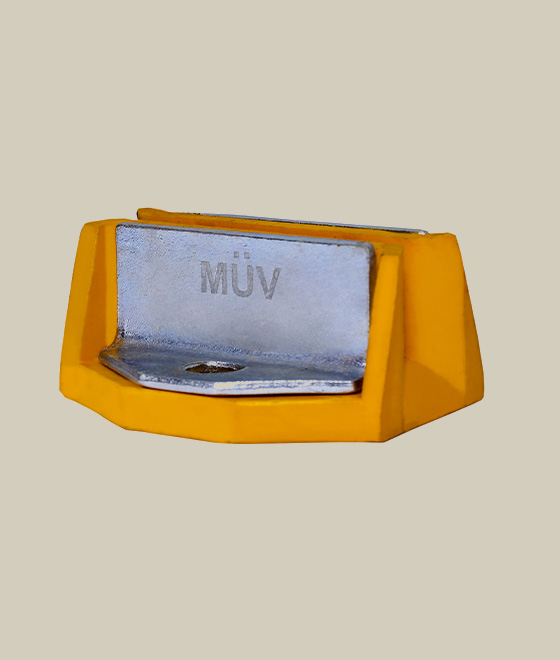

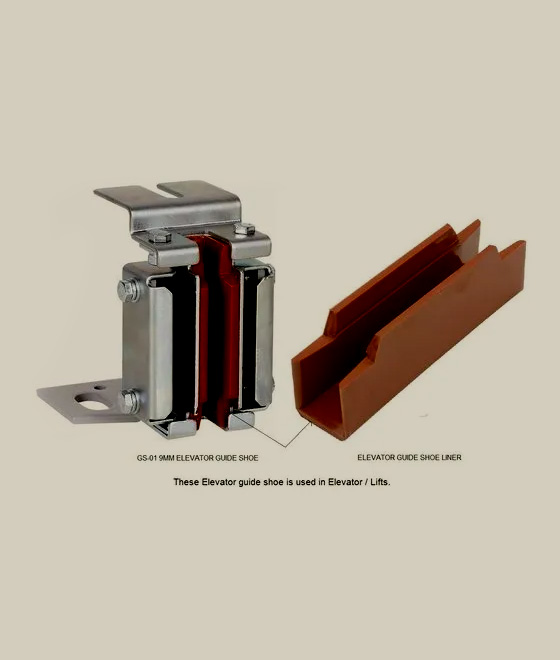

NYLON GUIDE SHOE
WITH METAL SUPPORT

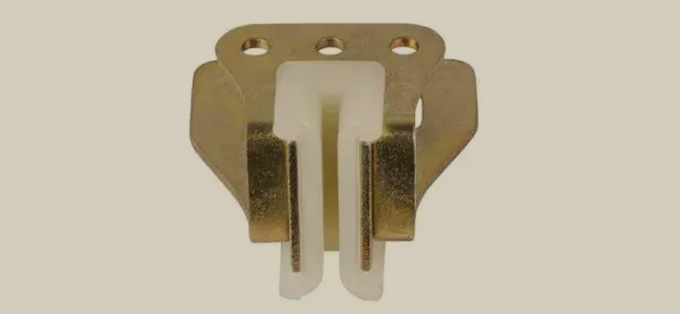

| Rail Size | Load daN | Type |
| From 5 to 6mm | 1000 | Nylon |

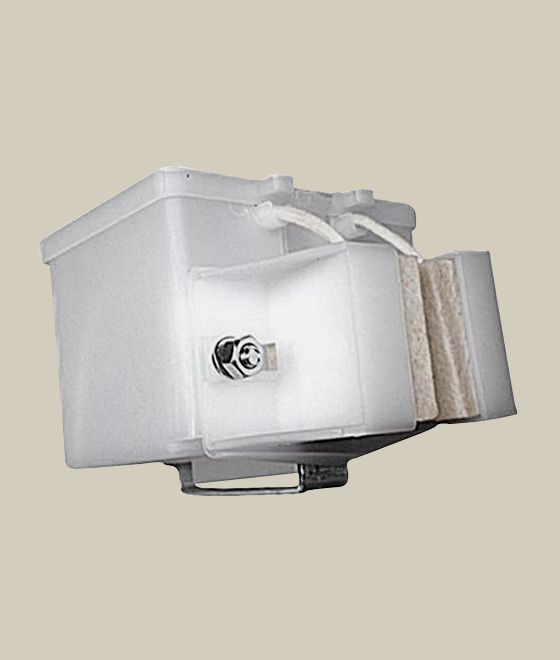

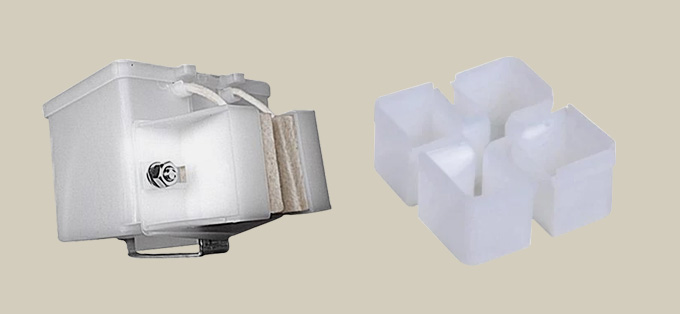

Oil Feeder Suitable
Oil Collector for rail size 5, 9, 14 & 16

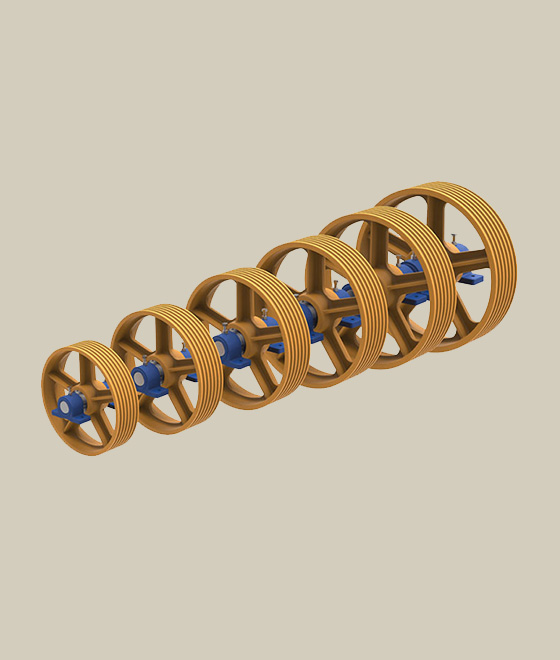

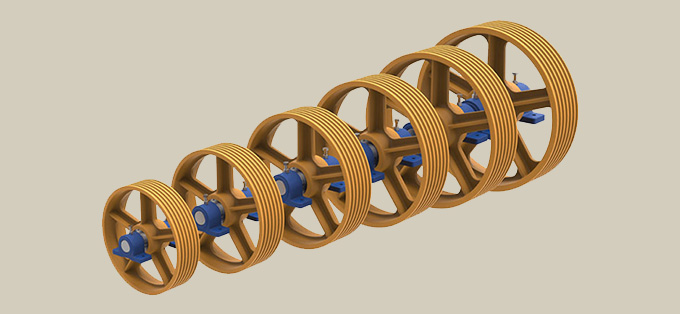

| Pulley Dia. 'D' | Rope Dia | No. of ropes | Pitch 'P' | Width 'W' | Shaft Dia. 'd' | Ball Bearing |
| 250 | 6 | 5 | 12 | 84 | 50 | 6210-ZZ |
| 250 | 6 | 7 | 12 | 116 | 50 | 6210-ZZ |
| 250 | 6 | 8 | 12 | 116 | 50 | 6210-ZZ |
| 300 | 8 | 4 | 12 | 70 | 50 | 6210-ZZ |
| 300 | 8 | 5 | 12 | 70 | 50 | 6210-ZZ |
| 300 | 8 | 6 | 12 | 83 | 50 | 6210-ZZ |
| 300 | 10 | 3 | 17 | 70 | 50 | 6210-ZZ |
| 300 | 10 | 4 | 17 | 83 | 50 | 6210-ZZ |
| 300 | 10 | 5 | 17 | 102 | 50 | 6210-ZZ |
| 300 | 13 | 3 | 19 | 70 | 50 | 6210-ZZ |
| 300 | 13 | 4 | 19 | 83 | 50 | 6210-ZZ |
| 300 | 13 | 4 | 19 | 83 | 50 | 6210-ZZ |
| 320 | 6 | 5 | 12 | 70 | 55 | 6211-ZZ |
| 320 | 6 | 6 | 12 | 86 | 55 | 6211-ZZ |
| 320 | 6 | 7 | 12 | 106 | 55 | 6211-ZZ |
| 320 | 6 | 8 | 12 | 130 | 55 | 6211-ZZ |
| 320 | 8 | 4 | 12 | 70 | 55 | 6211-ZZ |
| 320 | 8 | 5 | 12 | 70 | 55 | 6211-ZZ |
| 320 | 8 | 6 | 12 | 86 | 55 | 6211-ZZ |
| 400 | 8 | 4 | 12 | 70 | 55 | 6211-ZZ |
| 400 | 8 | 5 | 12 | 70 | 55 | 6211-ZZ |
| 400 | 8 | 6 | 12 | 84 | 55 | 6211-ZZ |
| 400 | 8 | 8 | 12 | 102 | 55 | 6211-ZZ |
| 400 | 10 | 3 | 17 | 70 | 55 | 6211-ZZ |
| 400 | 10 | 4 | 17 | 84 | 55 | 6211-ZZ |
| 400 | 10 | 5 | 17 | 102 | 55 | 6211-ZZ |
| 400 | 13 | 3 | 19 | 70 | 55 | 6211-ZZ |
| 400 | 13 | 4 | 19 | 84 | 55 | 6211-ZZ |
| 400 | 13 | 5 | 19 | 102 | 55 | 6211-ZZ |
| 525 | 8 | 6 | 12 | 102 | 55 | 6211-ZZ |
| 525 | 8 | 8 | 12 | 108 | 55 | 6211-ZZ |
| 525 | 10 | 3 | 17 | 102 | 55 | 6211-ZZ |
| 525 | 10 | 4 | 17 | 102 | 55 | 6211-ZZ |
| 525 | 10 | 5 | 17 | 102 | 55 | 6211-ZZ |
| 525 | 13 | 3 | 19 | 102 | 55 | 6211-ZZ |
| 525 | 13 | 4 | 19 | 102 | 55 | 6211-ZZ |
| 525 | 13 | 5 | 19 | 130 | 55 | 6211-ZZ |
| 525 | 13 | 6 | 19 | 130 | 55 | 6211-ZZ |
| ØP | GROOVES “n | ROPE DIA“mm” | A | C | L | V | Z | d | h | R | STATIC LOAD kg | BALL BEARINGS |
| 360 | 4 | 9-11 | 82 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 400 | 4 | 9-11 | 85 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 400 | 5 | 9-11 | 100 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 450 | 5 | 9-11 / 12-14 | 100 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 525 | 6 | 9-11 / 12-14 | 133 | 135 | 185 | 133 | 300 | 55 | 48 | 60 | 6300 | 6211-ZZ |
| 550 | 7 | 9-11 | 130 | 128 | 175 | 122 | 300 | 55 | 48 | 60 | 6300 | 6211-ZZ |
| 480 | 5 | 12-14 | 101 | 135 | 175 | 88 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 480 | 6 | 12-14 | 134 | 135 | 175 | 124 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 400 | 6 | 9-11 / 12-14 | 101 | 128 | 175 | 86 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 200 | 4 | 9-11 | 82 | 125 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 300 | 3 | 10-13 | 85 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 300 | 4 | 10-13 | 85 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 400 | 3 | 9-11 / 12-14 | 85 | 128 | 175 | 85 | 300 | 50 | 45 | 45 | 2500 | 6210-ZZ |
| 200 | 2 | 9-11 | 50 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 200 | 5 | 9-11 | 82 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 200 | 6 | 9-11 | 82 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 250 | 4 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 250 | 5 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 300 | 5 | 9-11 | 100 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 320 | 8 | 9-11 | 100 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 360 | 5 | 9-11 | 107 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 400 | 7 | 9-11 / 12-14 | 135 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 450 | 4 | 9-11 | 135 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 450 | 4 | 9-11 / 12-14 | 135 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 3900 | 6210-ZZ |
| 525 | 3 | 12-14 | 100 | 135 | 175 | 124 | 300 | 55 | 48 | 60 | 6300 | 6211-ZZ |
| 525 | 4 | 12-14 | 100 | 135 | 175 | 124 | 300 | 55 | 48 | 60 | 6300 | 6211-ZZ |
| 525 | 5 | 12-14 | 100 | 135 | 175 | 124 | 300 | 55 | 48 | 60 | 6300 | 6211-ZZ |
| 250 | 6 | 9-11 | 82 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 250 | 8 | 9-11 | 100 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 320 | 4 | 9-11 | 85 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 360 | 6 | 9-11 | 82 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 320 | 5 | 9-11 | 100 | 128 | 175 | 85 | 300 | 50 | 45 | 55 | 2000 | 6210-ZZ |
| 210 | 5 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 210 | 5 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 240 | 6 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 240 | 8 | 9-11 | 85 | 128 | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
| 240 | 10 | 9-11 | 85 | 128 Q | 174 | 53 | 300 | 45 | 49 | 45 | 1800 | 6209-ZZ |
HYDRAULIC BUFFER
| Impact Force N | Buffer Stroke (Single Buffer)mm |
| 21140 | 110 |

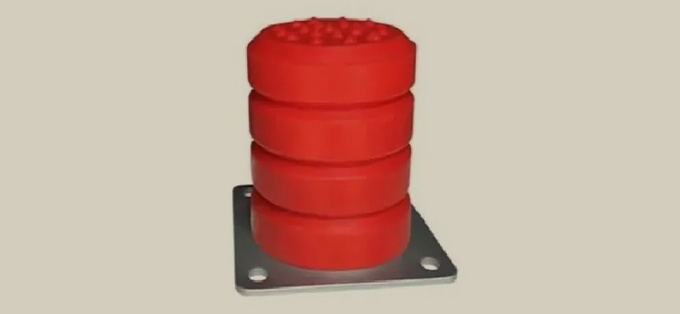

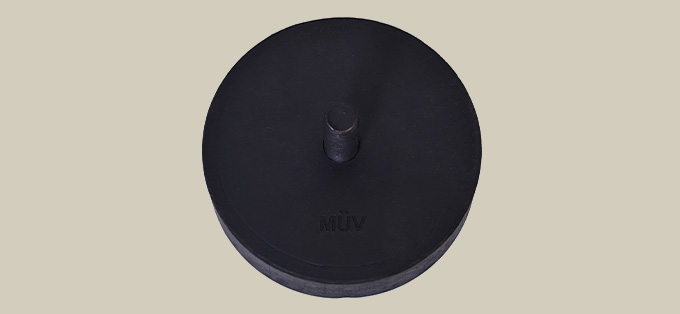

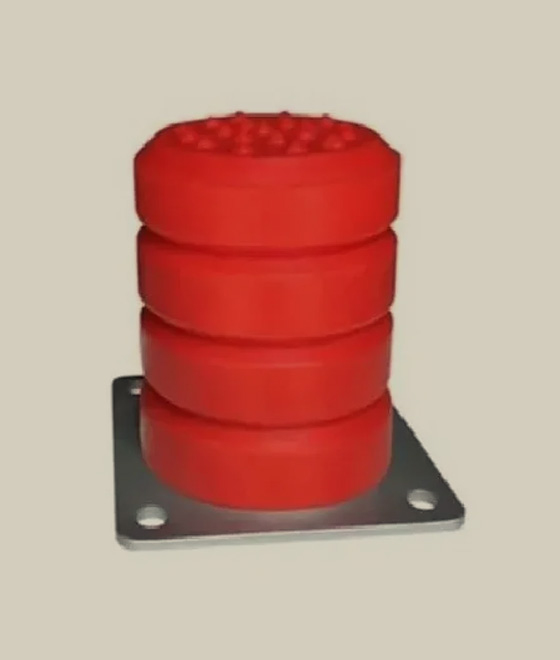

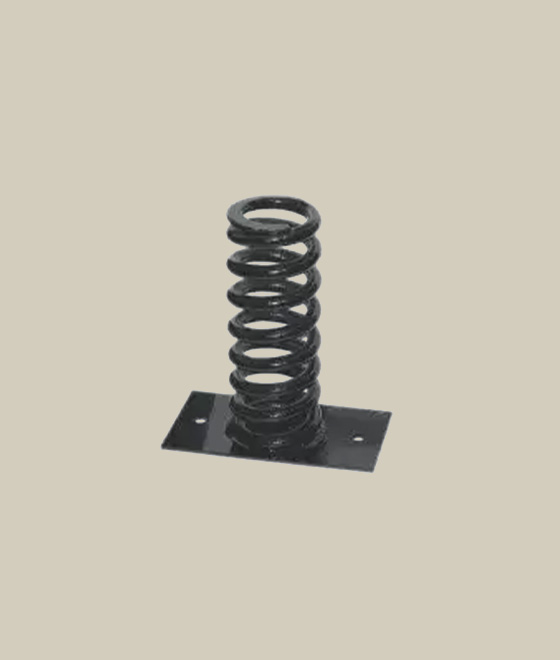

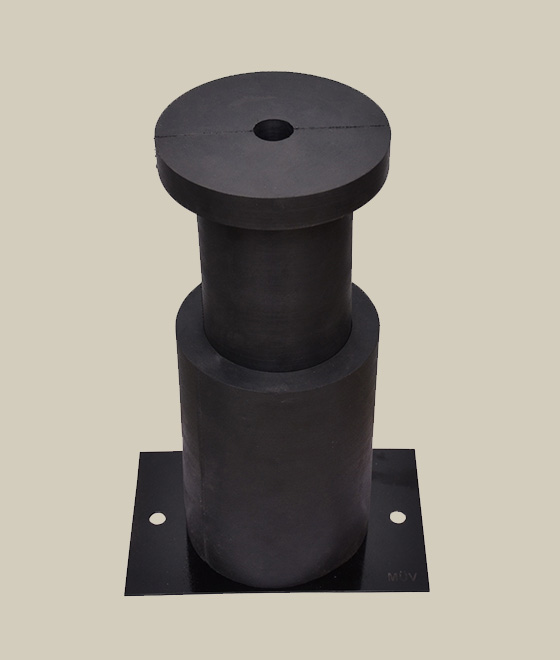

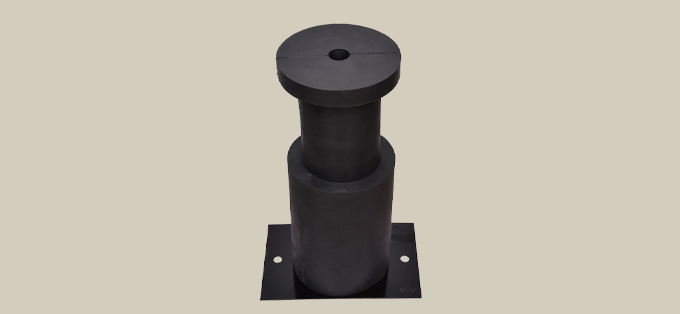

| HARDNESS | D mm | H mm | PIN | STROKE Y mm | LOAD daN |
| sh65 | 110 | 29 | M14x37 | 1000 | 7 |
| sh65 | 100 | 50 | M14x55 | 1000 | 7 |
ISO 9001:2015
CE certification
Compliance with international standards
